FW-ED15 Thermal Sight 640x512 Resolution 12µm UFPA Sensor

  • FW-ED15 Thermal Sight 640x512 Resolution 12µm UFPA Sensor
Place of Origin China
Marca Forward
Model Number FW-ED15
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C,T/T
Supply Ability 100 pcs/year

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
NETD ≤20mk Pixel pitch 12µm
Resolution 640×512 Spectral range 8-14µm
Frame rate 50Hz Image Sensor UFPA (VOx)
Evidenziare

FW-ED15 thermal imaging sight

,

640x512 infrared detector

,

thermal monocular with high resolution
Lasciate un messaggio
Descrizione di prodotto
FW-ED15 Thermal Image Sight 640 x 512 Resolution Infrared Detector
Key Specifications
Attribute Value
NETD ≤20mk
Pixel pitch 12µm
Resolution 640×512
Spectral range 8-14µm
Frame rate 50Hz
Image Sensor UFPA (VOx)
Product Overview

The FW-ED15 Thermal Image Sight features a 640 x 512 resolution infrared detector with high thermal sensitivity for exceptional detail recognition in challenging weather conditions. This advanced scope incorporates AI target recognition, target tracking, and intelligent ballistic calculation capabilities, making it ideal for hiking, hunting, and search and rescue operations.

Key Features
  • 12µm uncooled infrared detector with NETD≤20mk
  • 1024×768 resolution with 0.39 inch OLED display
  • AI-based automatic target recognition
  • Stable and reliable automatic target tracking
  • Multiple pseudo color options for different scenarios
  • Intelligent ballistic calculation function
  • Compact and lightweight design
Applications
  • Animal observation
  • Outdoor adventure
  • Security and law enforcement
  • Emergency search and rescue

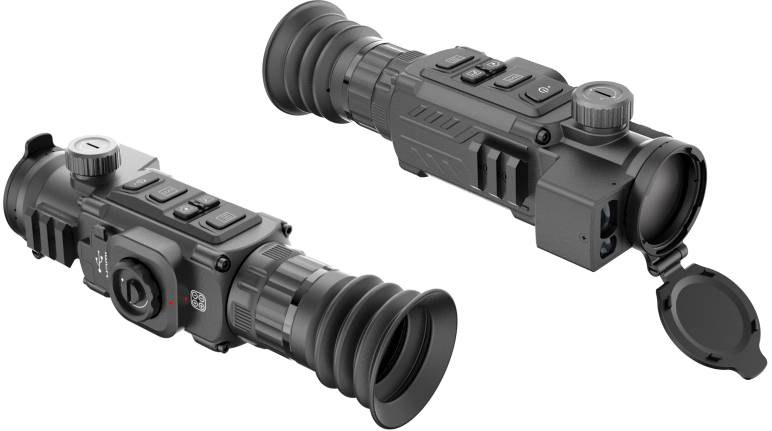

Components and Controls
FW-ED15 Thermal Sight 640x512 Resolution 12µm UFPA Sensor 0
  1. Objective lens
  2. Laser rangefinder
  3. Focus knob
  4. Power button
  5. Mode/Return button
  6. Capture/Left button
  7. Zoom/Right button
  8. Menu/Confirm button
  9. Diopter adjustment ring
  10. Ocular lens
Technical Specifications
Image Sensor: UFPA(VOx)
Resolution: 640×512
Pixel pitch: 12μm
NETD: ≤20mk
Spectral range: 8-14μm
FOV: 12.5°×10.0°
Focal length/Aperture: 35mm; F1.0
Focus Mode: Focus Knob
Eye relief/Exit pupil: 40mm/6mm
Diopter: +5D to -5D
Detection Range: 2.4km (Human; 2pixels)
Recognition Range: 410m (Human; 12pixels)
Screen: AMOLED, 0.39 inch
Brightness Adjustment: Supported
Color Palette: Hot/Fusion/Golden Hot etc.
Digital Zoom: 1×; 2×; 4×
