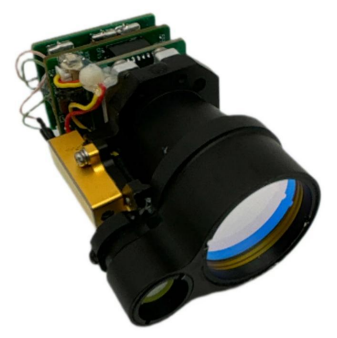

FW-ED05 1535nm Eye-safe Laser Ranging Module

  • FW-ED05 1535nm Eye-safe Laser Ranging Module
Place of Origin China
Marca Forward
Model Number FW-ED05
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C,T/T
Supply Ability 100 pcs/year

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Laser Wavelength 1535±5nm Launch Lens Diameter Φ10mm
Receiver Lens Diameter Φ25mm Ranging Accuracy ±2m
Range Resolution ≤15 m Divergence Angle ≤0.5 mrad
Lasciate un messaggio
Descrizione di prodotto

Descriptions of FW-ED05 1535nm Eye-safe Laser Ranging Module


The LRF0610C laser ranging module is a multi-pulse laser rangefinder that can measure the distance of  NATO targets (targets with a size of 2.3m×2.3m) with a distance of ≥ 6000m. It has the advantages of small size, light weight, low power consumption, long operating range, long service life, and Class 1 eye safety. It is widely used in laser measurement, Unmanned Aerial Systems (UAS), optical pods, and boundary monitoring.


 Specifications of FW-ED05 1535nm Eye-safe Laser Ranging Module


Laser Wavelength
1535±5nm
Eye Safety
Class 1
Divergence Angle
≤0.5mrad
Laser Energy
 ≥200 μJ
Launch Lens Diameter
Φ10mm
Receiver Lens Diameter
Φ25mm
Measuring Range(Reflectance 30%; visibility ≥ 5km.)
NATO objective(2.3m×2.3m) ≥6000m
Measuring human target(0.5m×1.7m) ≥1500m
Minimum Range
≤15 m
Ranging Accuracy
±2m
Ranging Frequency
0.5Hz ~10Hz
Number of multi-target detections
Up to 3 targets
False Alarm Rate
≤1%
Precision Rate
≥98%
Pin-in-lead package model
Molex51021-0500
Supply Voltage
DC 12 V
Standby Power Consumption
≤1mW
Average power consumption
≤2.5 W @10 Hz
Peak Power Consumption
≤7 W @12 V
Weight
≤90g
Dimention (L×W×H)
70×32×40mm
Operation Temperature
-40~＋70℃
Storage Temperature
-55~＋75℃
Impact Resistance
Meet the MIL-STD-810G testing standard
Vibration Resistance
Meet the MIL-STD-810G testing standard


 Outline Dimension(mm)
 FW-ED05 1535nm Eye-safe Laser Ranging Module 0
