FW-ED03 1535nm Eye-safe Laser Ranging Module

  • FW-ED03 1535nm Eye-safe Laser Ranging Module
Place of Origin China
Marca Forward
Model Number FW-ED03
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C,T/T
Supply Ability 100 pcs/year

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Laser Wavelength 1535±5nm Launch Lens Diameter Φ8mm
Receiver Lens Diameter Φ16mm Ranging Accuracy ±2m
Range Resolution ≤20 m Divergence Angle ≤0.6 mrad
Lasciate un messaggio
Descrizione di prodotto

Descriptions of FW-ED03 1535nm Eye-safe Laser Ranging Module

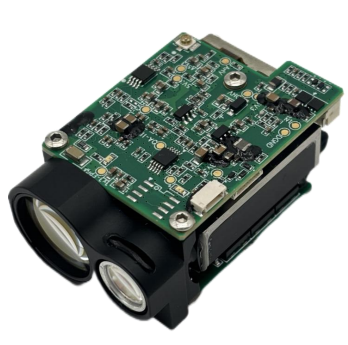

The FW-ED03 eye-safe laser ranging module adopts a self-developed 1535nm diode-pumped solid-state microchip laser. It has the capability to measure the distance of NATO targets with a size of 2.3m×2.3m, and the measuring range is ≥3000m. Its volume is ≤48×30.5×21 mm, and the weight is ≤32g. It is compact in size yet powerful in function. In addition, it supports serial port program updates and provides various installation options and electrical interfaces (excluding the housing). To further facilitate its integration into handheld portable devices or multi-functional systems, the module is equipped with embedded software. This product is widely applied in
laser ranging, Unmanned Aerial System (UAS), optical pods, and border monitoring.

 Specifications of FW-ED03 1535nm Eye-safe Laser Ranging Module


Laser Wavelength
1535±5nm
Eye Safety
Class 1
Divergence Angle
≤0.6mrad
Laser Energy
 ≥100 μJ
Launch Lens Diameter
Φ8mm
Receiver Lens Diameter
Φ16mm
Measuring Range(Reflectance 30%; visibility ≥ 5km.)
NATO objective(2.3m×2.3m) ≥3000m
Measuring human target(0.5m×1.7m) ≥1200m
Minimum Range
≤15 m
Ranging Accuracy
±2m
Ranging Frequency
Single, 1Hz ~10Hz
Number of multi-target detections
Up to 3 targets
False Alarm Rate
≤1%
Precision Rate
≥98%
Pin-in-lead package model
FWF08002-S06B13W5M
Supply Voltage
DC 3~5 V
Standby Power Consumption
≤1mW
Weight
≤32±1 g
Dimention (L×W×H)
48×30.5×21mm
Operation Temperature
-40~＋70℃
Storage Temperature
-55~＋75℃
Impact Resistance
Meet the MIL-STD-810G testing standard
Vibration Resistance
Meet the MIL-STD-810G testing standard


 Outline Dimension(mm)
 FW-ED03 1535nm Eye-safe Laser Ranging Module 0
